ARCTIC P8 Slim 80mm PWM PST Case Fan w/ Cable Splitter, Black, Fluid Dynamic, 300-3000 RPM

2 sold in last 8 hours
My Store
CF80-ARCP8PWMPST-SLIM-43775404
Out of stock
£46.23 £24.99
ARCTIC P8 Slim 80mm PWM PST Case Fan w/ Cable Splitter, Black, Fluid Dynamic, 300-3000 RPM 80 mm Low-Profile PWM Fan with Cable Splitter Speed: 300-3000 rpm (PWM controlled), (0 rpm below 5 % PWM) Airflow: 22.5 cfm Static Pressure: 2.35 mmH2O Bearing: Fluid Dynamic Bearing Connector: 4-Pin Connector + 4-Pin...
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Covid-19 Shipping Delay Notice

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

customers are viewing this product
Description

ARCTIC P8 Slim 80mm PWM PST Case Fan w/ Cable Splitter, Black, Fluid Dynamic, 300-3000 RPM

80 mm Low-Profile PWM Fan with Cable Splitter

  • Speed: 300-3000 rpm (PWM controlled), (0 rpm below 5 % PWM)
  • Airflow: 22.5 cfm
  • Static Pressure: 2.35 mmH2O
  • Bearing: Fluid Dynamic Bearing
  • Connector: 4-Pin Connector + 4-Pin Plug
  • Start-up Voltage: 6.9 V DC
  • Current | Voltage: 0.095 A | 12 V DC
  • Cable Length: 400 mm + 80 mm, Black





Optimal for HTPC, SBC and Slim Systems
Thanks to its low installation height of 15 mm and highly energy-efficient operation, the P8 Slim PWM PST is suitable for use in small PCs such as single-board computers and the entire SFF range.


300 to 3000 rpm Controlled via PWM PST

With a wide speed range and innovative PWM Sharing Technology (PST), the P8 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series.


Ideal for Small Spaces

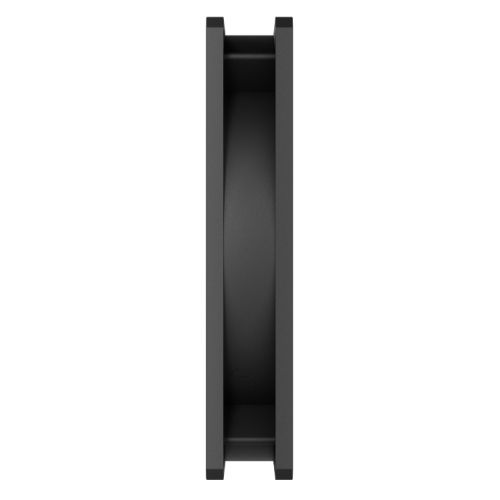

Unlike standard 80 mm case fans with a thickness of 25 mm, the P8 Slim PWM PST has a mounting height of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) builds.


0dB Mode — Zero rpm

The speed of the P8 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maximum performance on demand.


Optimised for High Static Pressure

Because the fan design of the P8 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow — even with increased air resistance. This makes the P8 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.


Maximum Smoothness, Minimum Vibration

The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.


High-Quality Sleeve Bearing

Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.


Improved Service Life

The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. The lower coil temperature therefore multiplies the service life and reduces frictional losses for more efficient operation.


Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.




Specifications:
- #Hide#Colour : Black
- #Hide#Max RPM : 3000 RPM
- Air Flow : 22.50 CFM
- Warranty : 6 Years
- #Hide#LED Lighting : No
- Dimensions : 80 x 80 x 15 mm
- Fan Bearing : Fluid Dynamic Bearing
- LED Lighting : -
- Fan Connector(s) : 4-pin
- Weight : 45g
- Fan Controller : PWM
- Rotation Speed : 300 - 2100 RPM 0 RPM below 5% PWM
- Colour : Black
- Package Type : Retail
- Type : 80mm Case Fan
- Additional Features : See Overview
- Package Weight : 0.0670 kg
- Power : Start-up Voltage: 6.9 V DC Current, Voltage: 0.095 A, 12 V DC
